Higher Capacity Rollers |
||||||
|
Higher Capacity Rolling Dollies |
||||||
|
|
||||||
| PART | SIZE | WEIGHT | # OF ROLLS | CAPACITY | PRICE | |
|
Free Rolling - Lower Dollies |
||||||
| HCD-4 | 6 x 15 inch | 13 lbs | 4 Rolls | 4 Ton | $152 | |
| HCD-5 | 6 x 15 inch | 15 lbs | 5 Rolls | 5 Ton | $183 | |
| HCD-6 | 6 x 15 inch | 18 lbs | 6 Rolls | 6 Ton | $216 | |
|

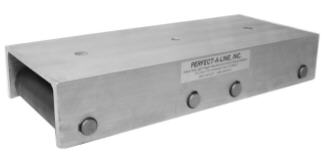

HCD-4 Lower Dolly |
||||||
|
|
PART | SIZE | WEIGHT | # OF ROLLS | CAPACITY | PRICE |
|
Free Rolling - Upper Dollies (6" Wide Recessed) |
||||||
| HCD-4R | 6 x 15 inch | 13 lbs | 4 Rolls | 4 Ton | $152 | |
| HCD-5R | 6 x 15 inch | 15 lbs | 5 Rolls | 5 Ton | $183 | |
| HCD-6R | 6 x 15 inch | 18 lbs | 6 Rolls | 6 Ton | $216 | |
|

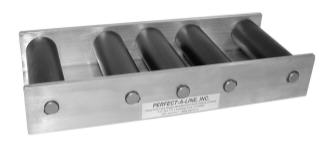

HCD-5R Upper Dolly |
||||||
| PART | SIZE |
WEIGHT |
# OF ROLLS |
CAPACITY |
PRICE | |
|
|
Free Rolling - Upper Dollies (8" Wide Recessed) |
|||||
| Great for Double Frames | ||||||
| HCD-4R-8" | 8 x 15 inch | 18 lbs | 4 Rolls | 4 Ton | $160 | |
| HCD-5R-8" | 8 x 15 inch | 20 lbs | 5 Rolls | 5 Ton | $193 | |
| HCD-6R-8" | 8 x 15 inch | 23 lbs | 6 Rolls | 6 Ton | $226 | |
|

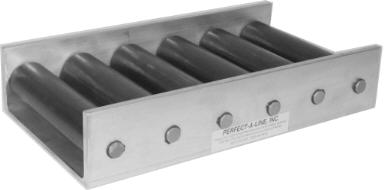

HCD-6R-8" Upper Dolly |
||||||
|
The Higher Capacity Rolling Dollies use a double-row bearing. The rollers have been |
||||||
|
tested and proven to have a higher capacity making them last longer. By using less rollers per |
||||||
|
assembly the rolling dollies can be made lighter, with a higher capacity, for virtually the same cost. |
||||||
|
All rollers come assembled in a 15" aluminum housing, making it so different sizes of guides are not |
||||||
|
needed. The rolling dollies also come bolted to the guide for your convenience. |
||||||
 |
||||||
|

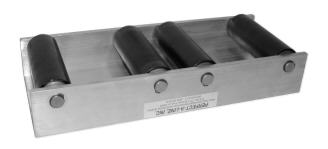

HCD-4 |
||||||
|
4 Roll Higher Capacity Rolling Dolly |
||||||
|
Replacement Rollers are available for existing equipment. |
||||||
|
These New Higher Capacity Rollers are the same diameter and length and |
||||||
|
will fit in your existing housings, giving you a higher capacity and a longer life. |
||||||
|
SRB includes: 1 Steel Roller and 2 Double Row Bearings $24.72 |
||||||
|
HCR includes: 1 Steel Roller, 2 Double Row Bearings, 1 Steel Axle and 2 Snap Rings $26.96 |
||||||
|
|
||||||
|

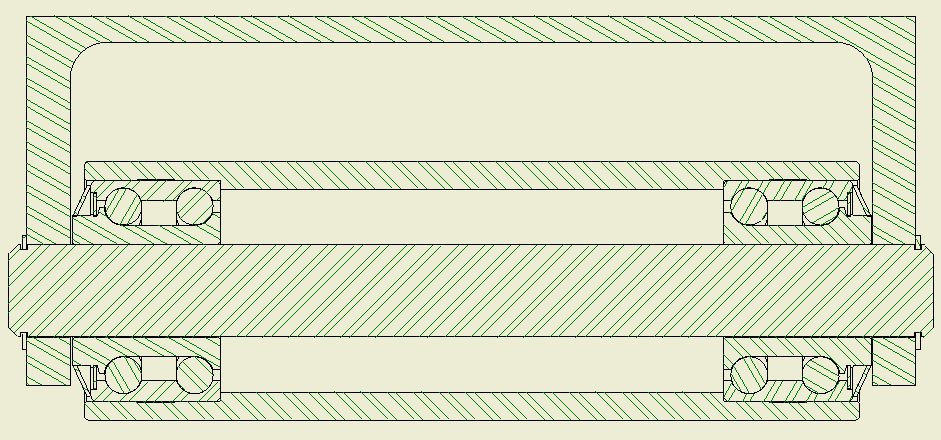

Cross Section of New Roller Assembled in Aluminum Housing |
||||||
